Scale: 1/350

Recommended to help build USS Oriskany CVA-34 from Gallery Model's 1/350 scale USS Intrepid CVS-11.

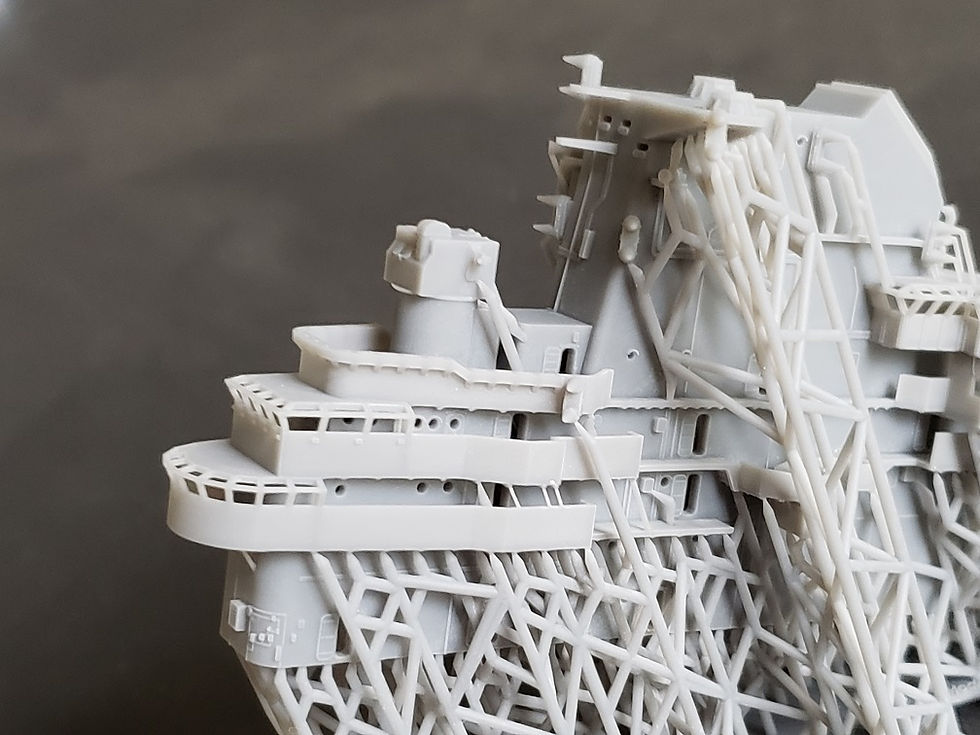

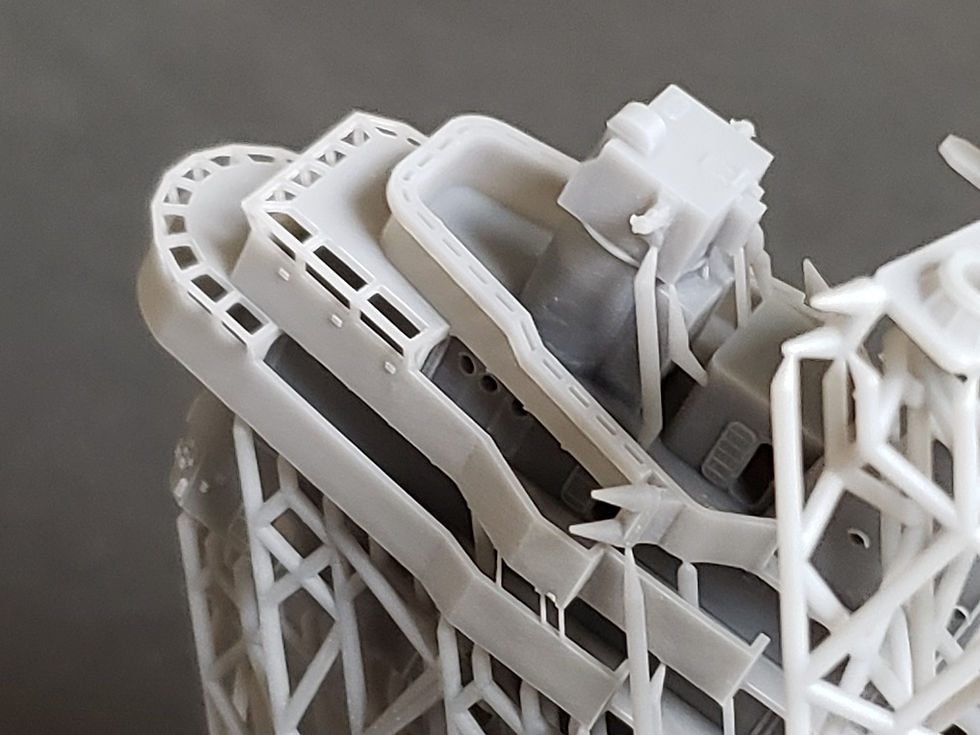

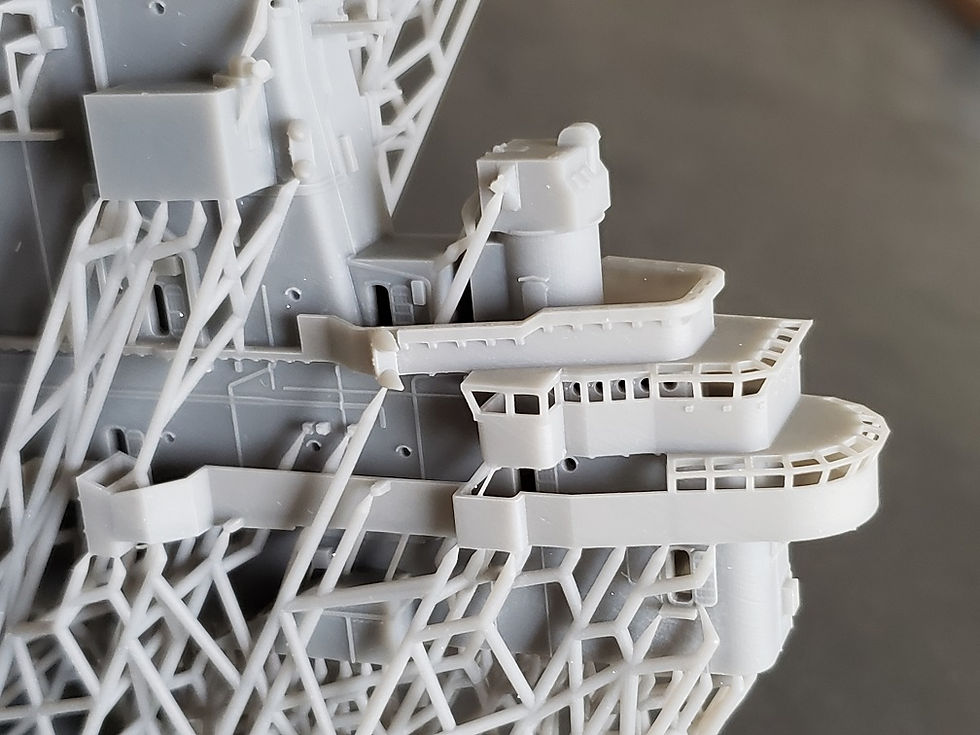

This multi-part kit represents the modernized island of Essex class aircraft carrier USS Oriskany CVA-34 as it appeared circa 1968-1973. This design includes the large, boxy structure extending outwards from the starboard side at the 09 level added to the real island circa early 1968. This structure served as Electronic Countermeasures Room No. 1.

During this period, Carrier Air Wing (CVW) 19, tail code NM, was embarked, equipped with Vought F-8 Crusaders, Vought A-7 Corsair IIs, Sikorski SH-3 Sea Kings and Grumman E-1 Tracers among other types.

With minor modifications, this island can be adapted to represent other Vietnam-era angle-deck Essex class carriers.  It is not accurate for USS Yorktown CVS-10, USS Hornet CVS-12, USS Randolph CVS-15 or USS Wasp CVS-18 because those ships had a different bridge window configuration.  Please check your references to confirm details of other ships.

Features:
scaled from official US Navy Booklet of General Plans drawings specifically of USS Oriskany, details adjusted to match photos
fully assembled
open bridge and PriFly windows with delicate framing
navigating bridge correctly offset to port
accurately shaped decks, catwalks and splinter shielding
accurately positioned deck features
deck supporting structure details accurately positioned
delicate exterior piping and electrical cabling and piping detail, properly routed specifically for Oriskany
accurately oriented and positioned flag lockers, specific to Oriskany
integrated Mk.37 fire control directors, Cold War-type
open portholes including those within the flag bridge and navigating bridge
porthole rigols ("eyebrows") accurately positioned, only on those portholes that actually had them
correct style doors, most in the open position with the door fixed to the bulkhead
door overhead chevron-shaped rain deflectors
correct number and position of PriFly splinter shield ribs
open funnel cap (grille not included, ready for your favorite photoetch set)

© Model Monkey LLC.  This 3D-printed product may not be copied or recast.
