Free!

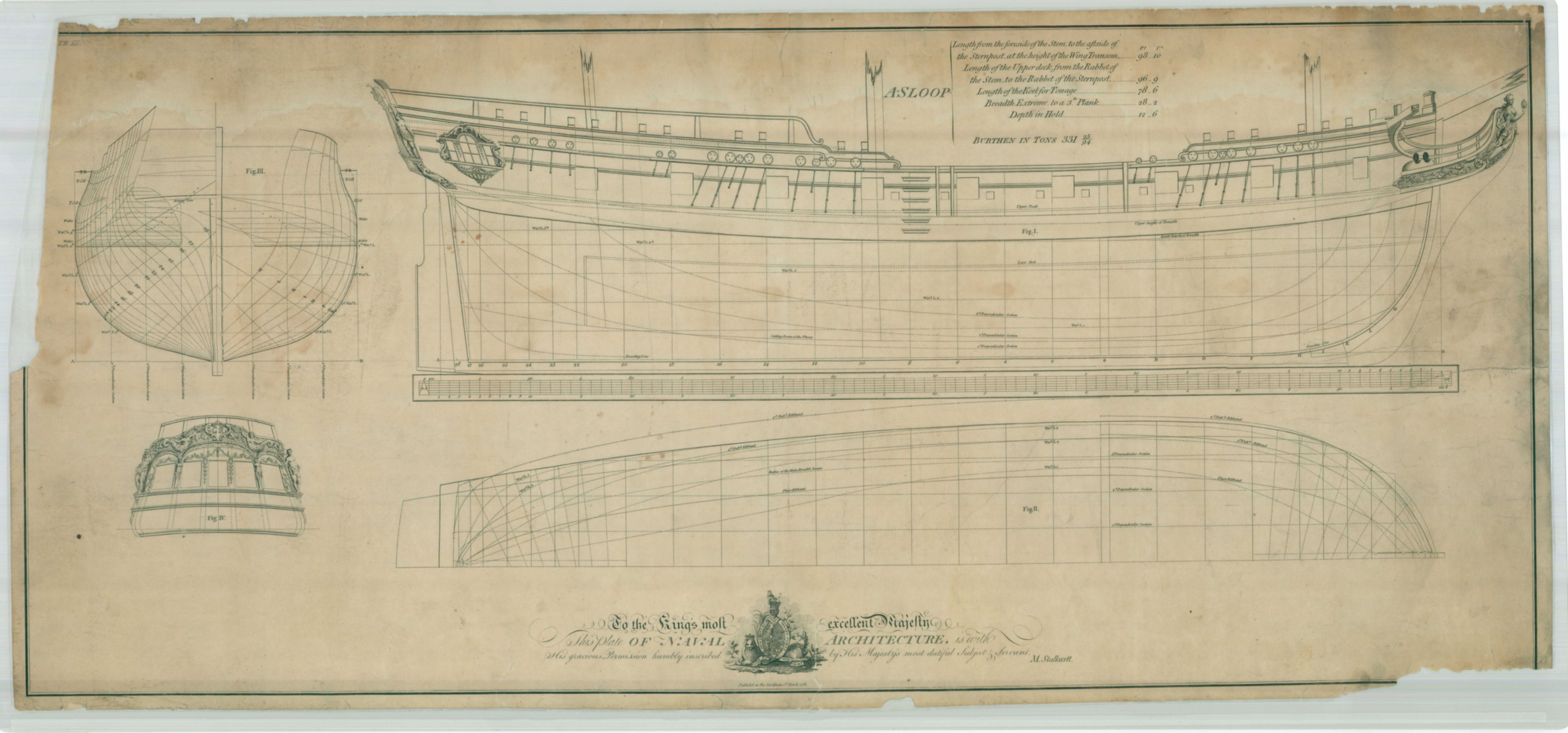

Here is a downloadable scan of an official Royal Navy drawing of an 18-gun, 3-masted sloop.  The drawing was prepared by celebrated English naval architect Marmaduke Stalkartt dated 1 March 1781.  The drawing includes the outboard profile, hull body plan, and transom.

The original scan was obtained from the US National Archives and Records Administration, College Park, Maryland.

Click here to search for more ship plans from the US National Archives.

Add to cart and order as if this were a model.  You will be able to download the plans as a *.jpg file after ordering at no cost to you.

Notice: these plans may not print at the scale stated on them due to the scanner settings chosen when the plans were originally scanned.
