Free!

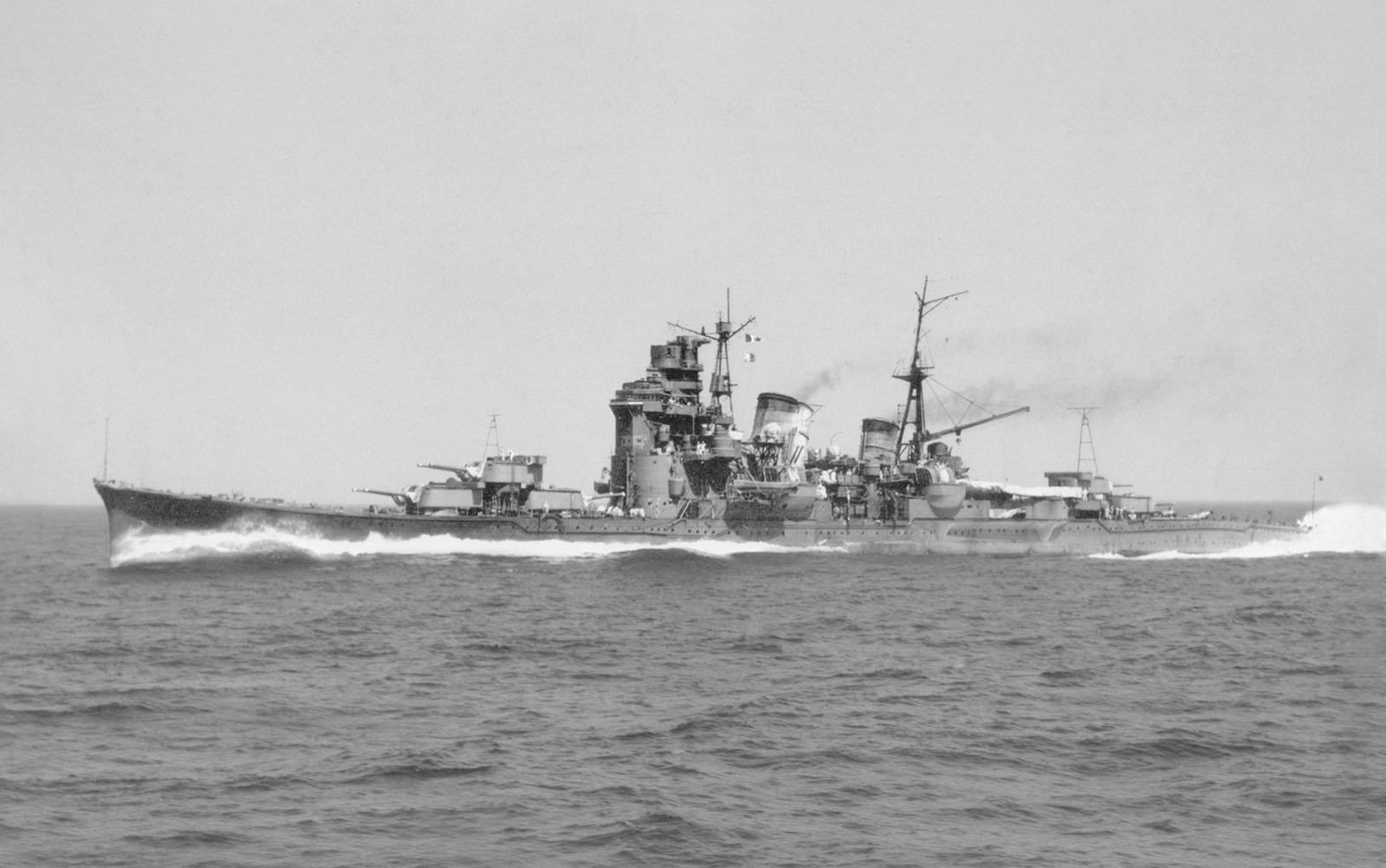

Here is a downloadable scan of the official Imperial Japanese Navy general arrangement drawings of the Myoko-class heavy cruisers Myoko and Nachi circa 1930

The original scan was obtained from the Kashiwa Library, University of Tokyo, via the Yuzuru Hiraga Digital Archive.

Click here to search for more ship plans from the Yuzuru Hiraga Digital Archive.

Add to cart and order as if this were a model.  You will be able to download the plans as a *.zip file after ordering at no cost to you.

Notice: these plans may not print at the scale stated on them due to the scanner settings chosen when the plans were originally scanned.
